CWS-85 Sliding

stainless steel sliding doors to a private villa

steel framed sliding patio doorThe CWS-85 Sliding is the sliding version of our enhanced CWS-85 system. Due to high demand, the CWS-85 system was expertly engineered with a whole host of specialised details to enable it to be realised as a sliding door system with beautiful steel framing.

Thanks to the advent of the CWS-85 steel sliding door a whole new dimension has been added to the design of steel framing and a fantastic alternative for bi folding doors has been created. These large sliding glass doors with steel framing can be used to create great walls of glass that slide open; combining the aesthetic beauty of steel framing with the functionality of a sliding door.

This sliding door system has been designed to be expertly versatile and flexible whilst maintain the enhanced performance characteristics of the CWS-85 range. Thanks to this enhanced function and performance the steel sliding door has been the perfect match for innovative architectural projects all over the UK.

Stunning Steel Frames

steel framed sliding door within wall of glass From 94mm, a reduced 64mm vertical frame can be used on some smaller door installations

Improved Insulation

Uw values of 1.1 W/m2K with a double glazed unit

Flexible Sliding Doors

The sliding door system can be designed in a two to four pane installation with a range of configurations available including bi parting and singular direction sliding.


Durable Performance

four pane sliding door in steelWind Resistance C3

Air Permeability Class 4

Water Tightness 8A

Acoustic Performance 43 (-1;- 4)dB

Security Rating RC2

Large Sliding Doors

Each sliding glass pane can hold a glass unit up to 400kg giving you a tested maximum size of 2.208m wide and 2.907m tall per sliding leaf. Larger sliding panes are available on request. Very large sliding panes may require automation.

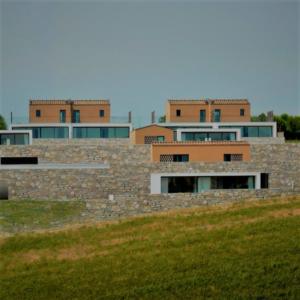

new build houses with steel framed doorsBroad Design Possibilities

Available in Galvanised Steel PPC any RAL colour, Stainless Steel with a scotch-brite or polished finish, Architectural Bronze and Corten Steel.

Glazing Bars can be integrated if required to a bespoke design.
