Thermally Broken

Thermally broken systems are used to create insulated windows and doors, with high levels of thermal performance.

If your window or door is going to be separating two different climates, the inside and the outside of a home for instance, you must use a window or door system that is thermally broken.

A thermal break means that there is a non-conductive material separating the internal metal frame with the external. This is imperative for external windows and doors. Steel and architectural metals conduct heat very easily. If you do not have a thermal break within the steel framing (as is the case with lots of traditional steel windows and doors) the internal side of the metal frame will be the same temperature as the external frame. In winter or in colder climates this will cause the internal face of your metal window frame to become very cold, bringing in cold drafts from outside and creating a prime location for condensation and frost to form.

Many traditional steel window systems do not have a thermal break within the framing. Thermal break technology is relatively new and innovative, allowing us to create ultra slim steel framing, with a full thermal break, without decreasing the inherent strength of  the steel construction.

We offer a wide range of metal windows and doors, all with a full two part thermal break throughout the framing for enhanced levels of thermal insulation.

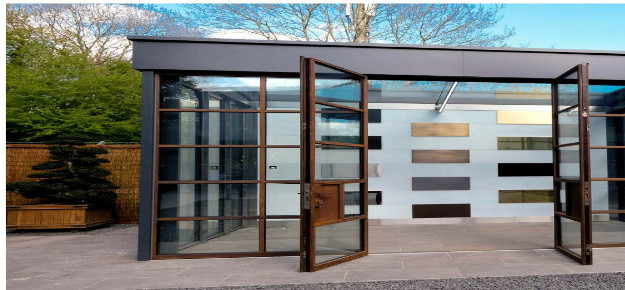

CWS-B50 Slim

Steel and bronze windows have been, and still, continue to be the preferred choice for architects due to their graceful aesthetic and design qualities. The CWS-B50 Slim fulfils architectural requirements and provides an elegant and stylish system with a thermally broken bronze frame of 55.5mm deep and a fixed sightline of only 32mm. In addition to impressive acoustic performance and high thermal performance, the system provides high levels of security and weather resistance.
Share
Read More
CWS-B50 Slim

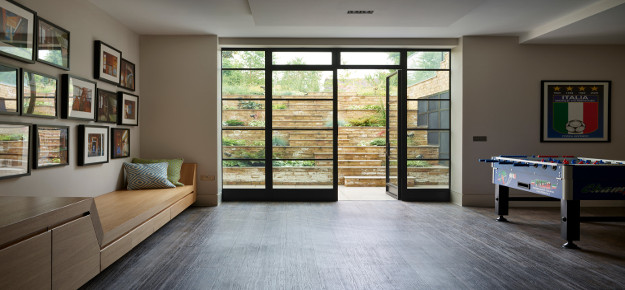

CWS-50 Slim

CWS-50 Slim

The CWS-50 offers a timelessly elegant and sophisticated window and door system with a slim framing of only 57.5mm, manufactured from cold formed galvanised steel. The frame is thermally broken for enhanced thermal insulation providing a Uw value of 1.5 W/m2K.
Share
Read More

CWS-65 Slim

The Mondrian® CWS-65 Slim has the slimmest framing possible from a thermally efficient steel windows system. The system is made from true cold rolled steel profiles with a two part thermal break separating the inner steel section and the outer section.
Share
Read More
CWS-65 Slim

CWS-75 Slim

CWS-75 Slim

The CWS-75 Slim window and door system is an updated version of our original 65 deep system. The additional depth allows us to offer a higher level of thermal insulation and a wider range of opening configurations, all with the same ultra slim steel framing design.
Share
Read More

CWS-65

As building performance demands grow ever steeper the thermal performance required from your steel windows and doors increases. Our CWS-65 steel window and door system offers the elegance of a steel or architectural metal profile with enhanced performance in thermal insulation as well as security and weather resistance.
Share
Read More
CWS-65

CWS-85

CWS-85

The CWS-85 brings together all the best attributes of a steel window design into one. The sophisticated steel framing incorporates a deep two part thermal break to ensure the highest instillation values of any steel framing system on the market. With a deeper framing section it is possible to include an enhanced triple glazed unit, bringing the thermal performance values up even further.
Share
Read More

CWS-85 Sliding

The CWS-85 Sliding is the sliding version of our enhanced CWS-85 system. Due to high demand the CWS-85 system was expertly engineered with a whole host of specialised details to enable it to be realised as a sliding door system with beautiful steel framing.
Share
Read More
CWS-85 Sliding

Glass Roofs

Glass Roofs

Continue the beauty of steel framing all the way up to the sky with one of our steel supported glass roofs. By using high specification structural glass we are able to create large spans of glass that are supported by minimal steel sections, offering you the same finish for the glass roof as the steel doors and windows.
Share
Read More
